I. Definition and Core Value

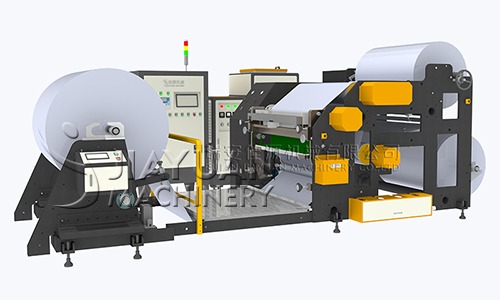

A multi-functional medical tape coating machine is a critical piece of automated equipment in the production of medical dressings. It is specifically designed to uniformly apply adhesives with high precision onto substrates (such as nonwoven fabric, PE film, or paper) and processes them through drying and lamination to create various medical tape products. Its core value lies in meeting the stringent requirements for consistency, safety, and cleanliness in medical products, making it indispensable for manufacturing band-aids, sports tape, zinc oxide tape, transdermal patches, and more.

II. Core Working Principles and Technical Methods

These machines primarily employ three coating technologies to suit different product needs:

Roll Coating: Controls the amount of adhesive transfer through the precise gap between the application roller and the metering roller. Suitable for high-viscosity adhesives (>5000cP). It can be divided into forward roll coating (rolls rotate in the same direction) and reverse roll coating (rolls rotate in opposite directions), the latter offering wider viscosity adaptability.

Slot-Die Coating: A high-precision pre-metered coating technology. A metering pump delivers adhesive at constant pressure to a precision slot-die head, which applies it directly onto the substrate. Die design must consider fluid dynamics, thermal expansion control, and anti-clogging features, with lip flatness errors controlled within ±2μm. For high-speed coating (≥30m/min), a vacuum box is often equipped to eliminate air entrapment and ensure coating quality.

Hot Melt Coating: An eco-friendly, solvent-free process. Solid Hot Melt Adhesive is heated to a molten state and applied directly to the substrate via a coating head. It requires no drying stage, offering high efficiency and energy savings, making it the preferred process for products like transdermal patches and cataplasms.

III. Key Technical Parameters and Features

1. Key Technical Parameters

Parameter Typical Range Medical-Grade Specifications

Coating Width 200 - 1500 mm Common medical width: 1100 mm

Mechanical Speed 10 - 50 m/min ≤30 m/min for high-precision models

Coating Weight 25 - 100 g/㎡ 50 - 100 g/㎡ for patch standard

Thickness Accuracy ±0.02 mm Can reach ±0.02 mm for R&D models

Total Power 25 - 210 kW 180 W for small lab machines

Temperature Control Room Temp - 200 °C PID control ±1 °C

2. Core Features

Intelligent Control: Utilizes PLC and HMI (Touch Screen) for recipe storage, one-touch recall, real-time monitoring, and fault diagnosis, significantly enhancing operability and production stability.

Medical-Grade Compliance: All product contact parts are made of 316L stainless steel or PTFE, complying with GMP standards to ensure product cleanliness and freedom from contamination.

Precision Coating: Employs comma刮刀 (comma bar), precision micro-gravure rollers, etc., to achieve micron-level (±2μm) coating uniformity; slot-die coating speed can exceed 30 m/min.

Modular Design: Offers high flexibility. Production can be quickly switched between different products like kinesiology tape, fever cooling patches, and band-aids by changing the coating head, dies, and other modules.

Comprehensive Safety: Equipped with emergency stop buttons, safety light curtains, and protective guards to effectively prevent risks like mechanical injury and thermal burns, ensuring personal and equipment safety.

IV. Application in Typical Product Lines

Wave-Lined Sports Bandage: Often uses roll coating with a coating weight of 50-70g/㎡. The production line features a PLC synchronization control system for precise tension control throughout the unwinding-coating-drying-rewinding process.

Zinc Oxide Tape/Medical Rubber Plaster: Uses knife-over-roll or reverse roll coating processes, with operating speeds up to 50m/min.

Medical Paper Tape: Designed for fixation and bandaging. Products must meet strict medical standards such as peel adhesion ≥1.0N/cm and holding power (creep) ≤2.5mm.

V. Application Scenarios

Medical Fixation: Used for securing IV catheters/needles, wound dressings, and various transdermal patches.

Specialized Medical Use: Tapes with different substrates and adhesives are suited for sensitive skin, joints, and other specialized medical scenarios.

Industrial Applications: Some models can be configured for industrial production, such as cleaning tapes and nonwoven tapes.

VI. Future Development Trends

Intelligence: Integration of AI vision inspection and adaptive control systems for online automatic adjustment and optimization of process parameters. Remote equipment status monitoring and predictive maintenance via IoT technology are expected to reduce unplanned downtime by over 30%.

Green Environmental Protection: Solvent-free coating technologies like hot melt will become mainstream, driving the industry towards greater environmental sustainability and lower carbon emissions.

Customization: Increasingly diverse market demands are pushing equipment manufacturers to provide more specialized and customized solutions to meet the specific production needs of particular products and materials.

Example of a Domestic Manufacturer

Ruian Jiayuan Machinery Co., Ltd.: Specializes in models like the JYT-B multi-functional medical tape coating machine and UV curing coating machines. With a coating width of 1100mm and speeds up to 50m/min, they focus on producing medical tape, kinesiology tape, rubber plaster, and various high-end dressings.
