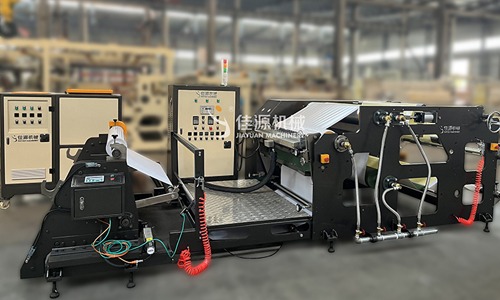

Hot Melt Adhesive Coating Laminating Machine: An Efficient and Eco-Friendly Solution for Material Lamination

The Hot Melt Adhesive (HMA) Coating Laminating Machine is a core laminating equipment in modern packaging, building materials, home textiles (non-woven fabrics), and other industries. Utilizing hot melt adhesive as the bonding agent, it achieves strong adhesion between various materials such as films, paper, fabrics, and metal foils through precise coating and lamination processes. It is widely used in food packaging, medical dressings, automotive interiors, and more.

The core advantages of the equipment lie in its environmental friendliness and high efficiency: It employs solvent-free hot melt adhesive, eliminating volatile organic compound (VOC) emissions at the source and fully complying with modern green production standards. The adhesive is heated to a molten, flowable state in a temperature-controlled melting system and applied directly, eliminating the drying stage required for traditional solvent-based adhesives. This boosts production efficiency by over 40% and reduces energy consumption by more than 30% compared to conventional equipment.

Its workflow ensures stability and controllability: The unwinding mechanism delivers the substrate smoothly via a tension control system, preventing wrinkles and misalignment. The hot melt adhesive maintains optimal fluidity under precise temperature control (typically 80-180°C) within the melting tank, and is then uniformly coated onto the substrate surface by a precision coating head (types such as knife, roll, or spray coating can be selected as needed). Finally, the materials are bonded under pressure by the laminating nip rollers and solidify upon cooling to complete the lamination. The entire process can be monitored and adjusted in real-time through a Programmable Logic Controller (PLC) control system, ensuring lamination precision within ±0.1mm.

The equipment also offers flexible adaptability. Coating weight and speed can be adjusted based on material characteristics to meet the lamination requirements of different thicknesses and material types. It provides an efficient, eco-friendly, and stable material lamination solution for multiple industries.

Ruian Jiayuan Machinery Co., Ltd. specializes in manufacturing: Hot Melt Coating Machines, Medical Tape Coaters, Hot Melt Spray Coating Machines, Butyl Tape Coating Machines, Hot Melt Film Applicators, UV Hot Melt Label / High-Speed Scraper-Free Coating Machines, and other adhesive application equipment. Our products are widely used in industries including labels, tapes, advertising consumables, medical dressings, automotive interiors, appliance sealing, filters, carton packaging, and non-wovens. Our production base is located in Ruian City, Zhejiang Province – a national manufacturing hub.
